SC Tank Vertical Pumps

SC Tank Vertical Pumps

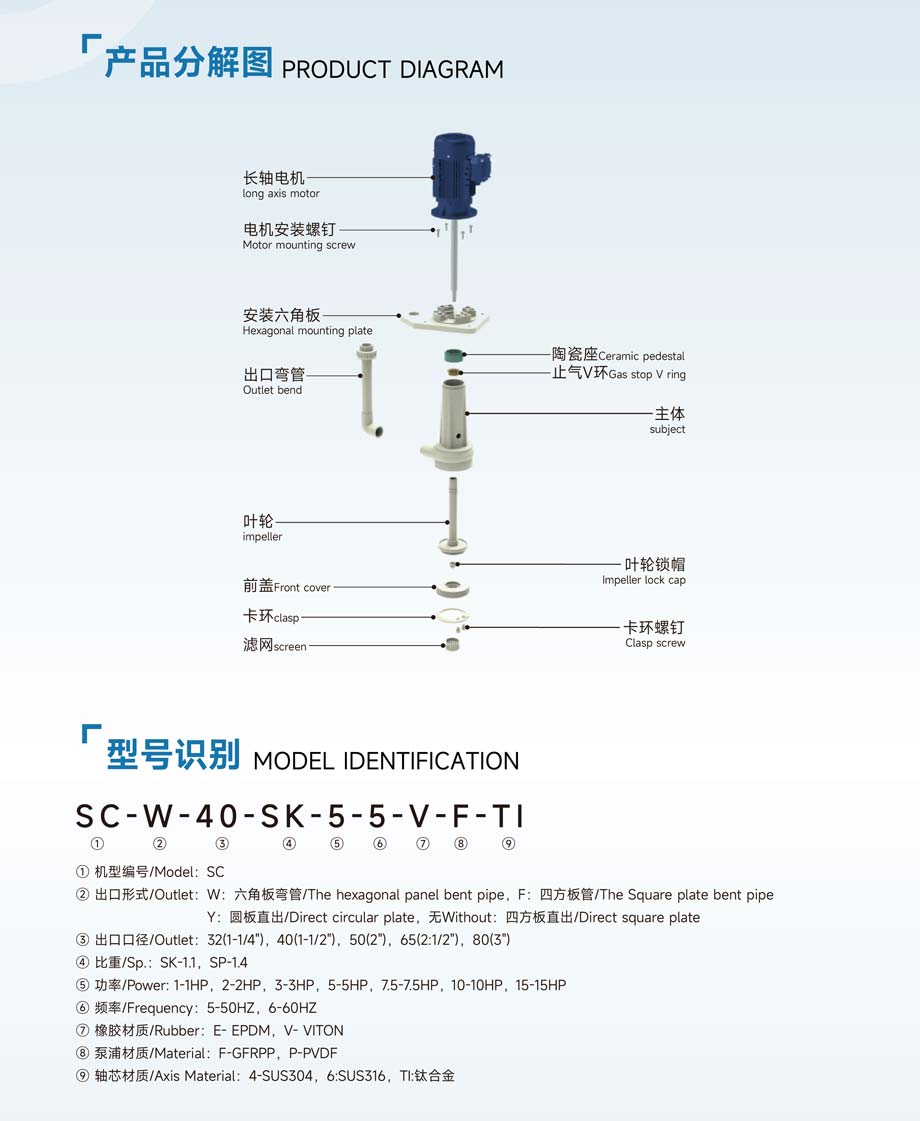

Model parameters

　　S C - W - 4 0 - S K - 5 - 5 - V - F - T I

　　①     ②     ③    ④    ⑤   ⑥  ⑦  ⑧  ⑨

　　① Model：SC

　　② Outlet：W：The hexagonal panel bent pipe

　　　　　　　　　　　　F：The Square plate bent pipe

　　　　　　　　　　　　Y：Direct circular plate

　　　　　　　　　　　　Without：Direct square plate

　　③ Outlet：32(1-1/4")，40(1-1/2")，50(2")

　　④ Sp.：SK-1.1，SP-1.4

　　⑤ Power: 1-1HP，2-2HP，3-3HP，5-5HP，7.5-7.5HP，10-10HP

　　⑥ Frequency：5-50HZ，6-60HZ

　　⑦ Rubber：E- EPDM，V- VITON

　　⑧ Material：F-GFRPP，P-PVDF

　　⑨ Axis Material：4-SUS304，6:SUS316，TI:aluminum alloy

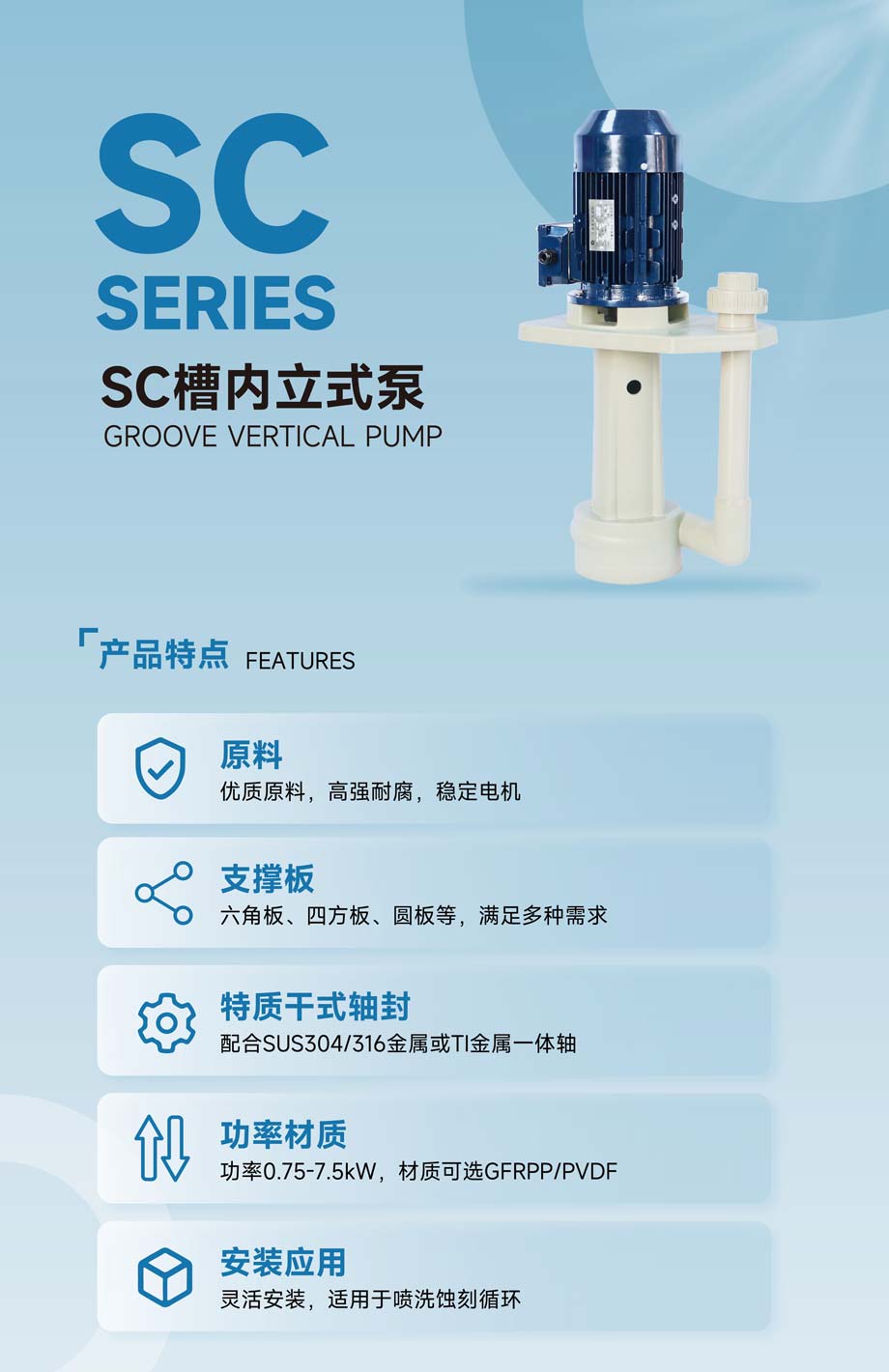

Product Features

　　Various support plate structures such as hexagonal plate, quadrilateral plate, round plate, etc. are lightweight, corrosion-resistant and meet different needs.

　　Stabilized special dry shaft seal, with SUS metal or TI metal one-piece shaft, can fully cope with the harsh environment.

　　Imported/listed company's high quality raw material, greatly improving the strength and corrosion resistance of the product. Schrader's customized one-piece shaft motor ensures the stability of motor work.

　　Pump power range from 0.75Kw to 7.5Kw, body material can be selected GFRPP/PVDF.

　　Suitable for all kinds of in-tank installation, can be equipped with filters, suitable for liquid spraying, etching and circulating processes.
