SD Vertical Pumps

SD Vertical Pumps

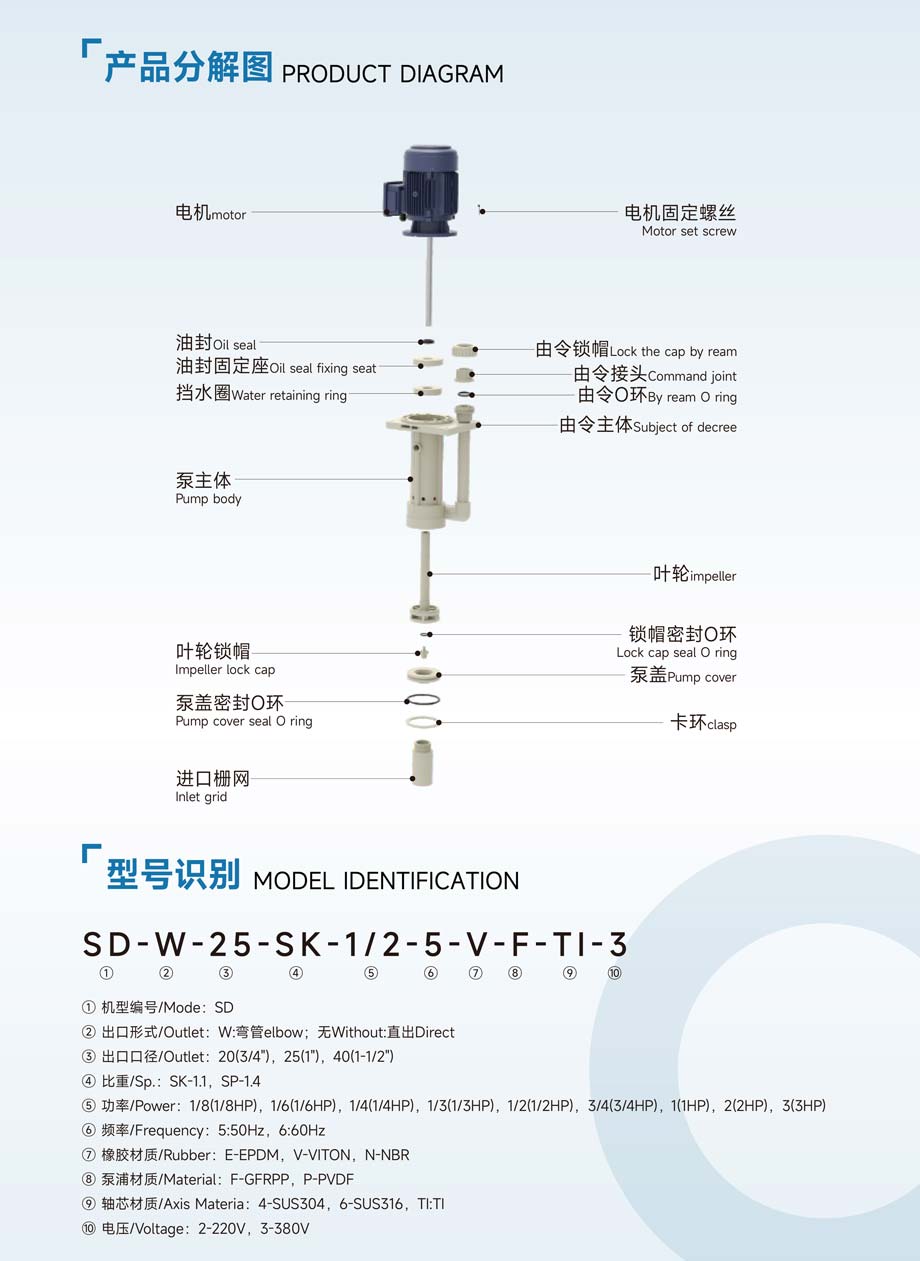

Model parameters

　　S D - W - 2 5 - S K - 1 / 2 - 5 - V - F - T I - 3

　　① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩

　　① Mode：SD

　　② Outlet：W:The hexagonal panel bent pipe;Without:Direct

　　③ Outlet：20(3/4")，25(1")，40(1-1/2")

　　④ Sp.：SK-1.1，SP-1.4

　　⑤ Power：1/8(1/8HP)，1/6(1/6HP)，1/4(1/4HP)，1/3(1/3HP)，1/2(1/2HP)，3/4(3/4HP)，1(1HP)，2(2HP)，3(3HP)

　　⑥ Frequency：5:50Hz，6:60Hz

　　⑦ Rubber：E-EPDM，V-VITON，N-NBR

　　⑧ Material：F-GFRPP，P-PVDF

　　⑨ Axis Materia：4-SUS304，6-SUS316，TI:TI

　　⑩ Voltage：2-220V，3-380V

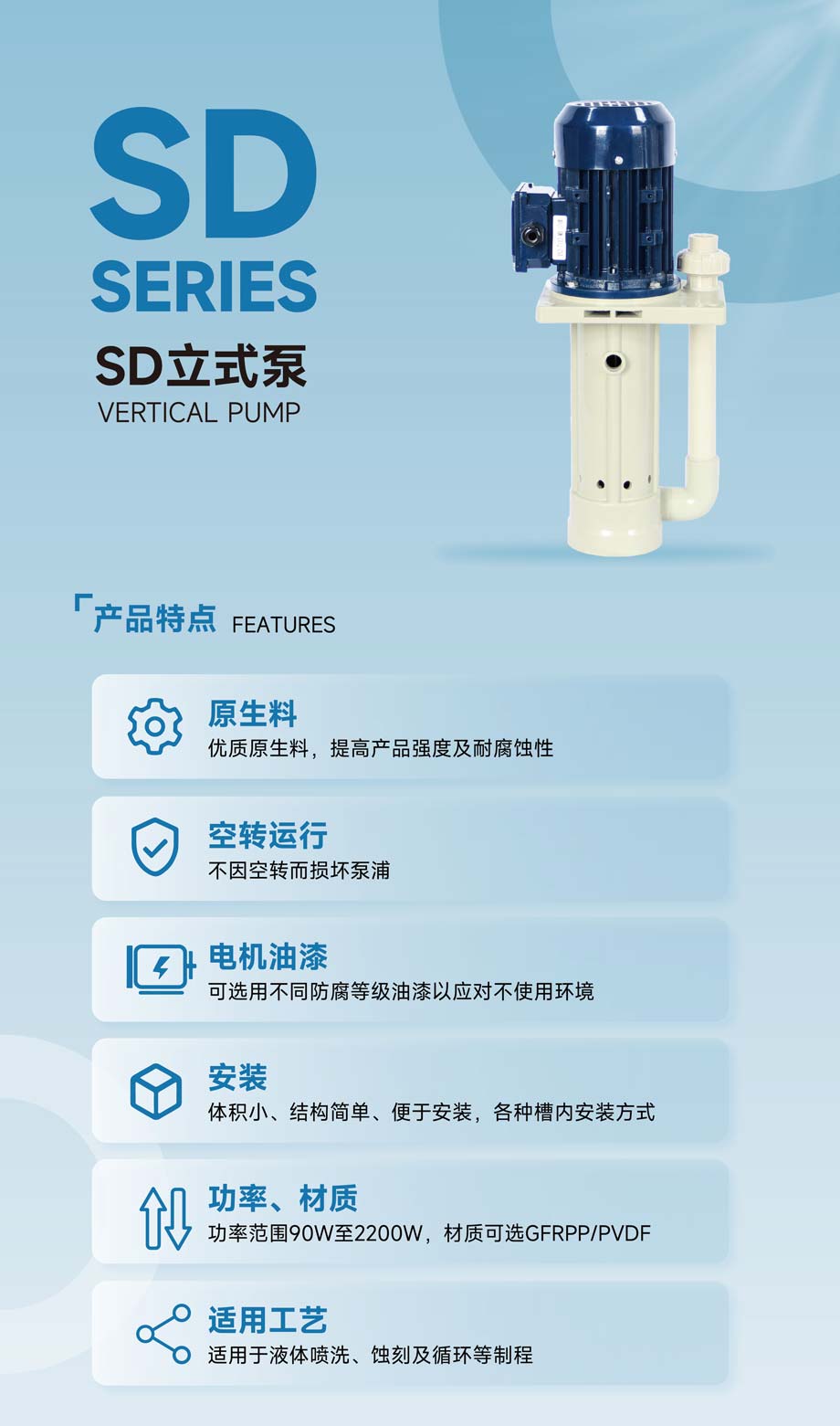

Product Features

　　High-quality raw materials, greatly improving the strength and corrosion resistance of the product. Completely freewheeling operation, never damage the pump due to freewheeling. The motor can be painted with different anticorrosive grades to cope with different usage environments.

　　Small size, rational design, simple structure, easy to install and maintain.

　　Suitable for installation in the tank, with different types of outlets to meet the different use of space.

　　Pump power range from 90W to 2200W, body material can be used GFRPP/PVDF.

　　Suitable for all kinds of in-tank installation, can also be equipped with filters for use in liquid spraying, etching and circulation processes.
