SQ stainless steel centrifugal pump

SQ stainless steel centrifugal pump

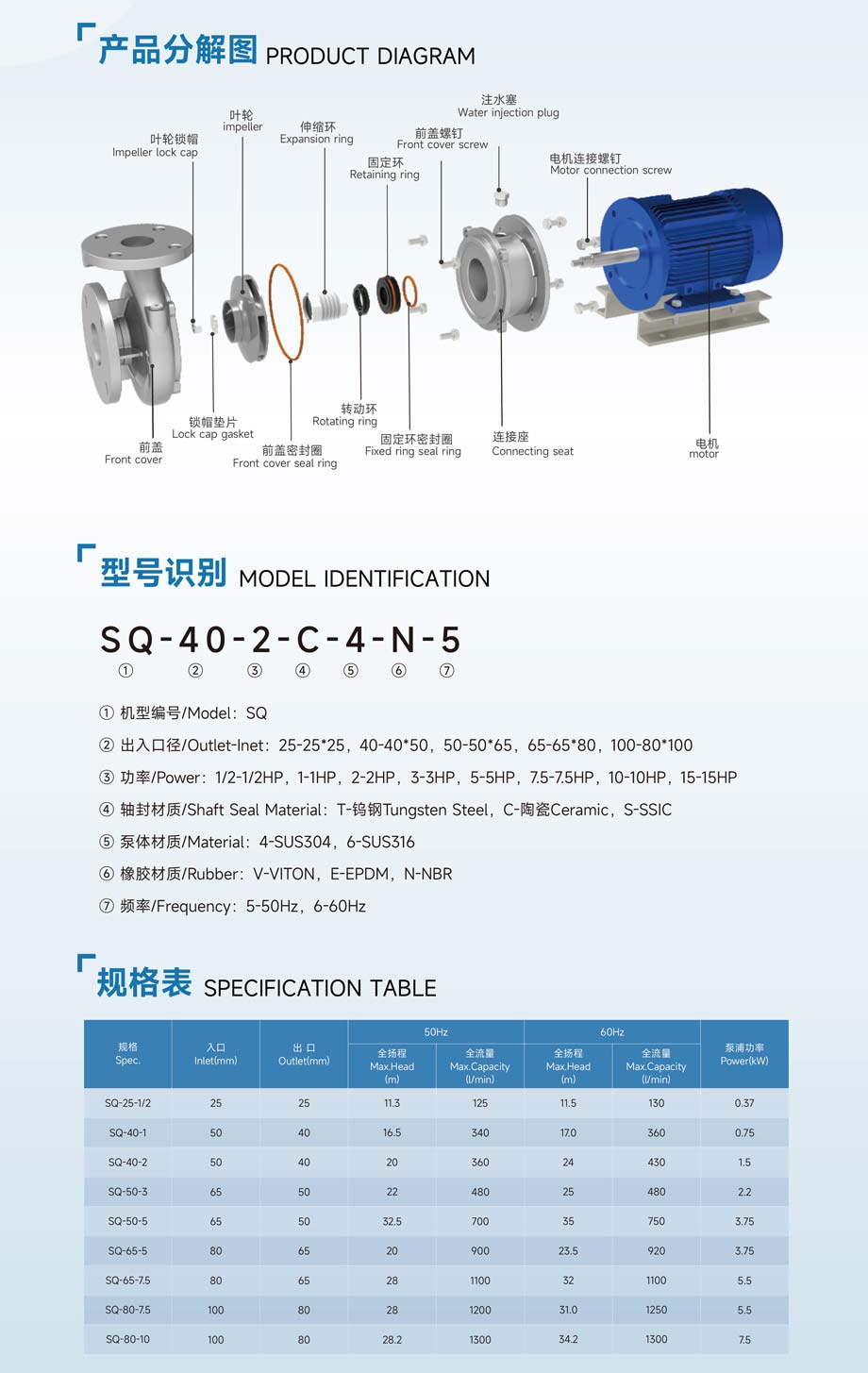

Model parameters

　　S Q - 4 0 - 2 - C - 4 - N - 5

　　 ①      ②    ③  ④  ⑤  ⑥   ⑦

　　① Model：SQ

　　② Outlet-Inet：25-25*25，40-40*50，50-50*65，65-65*80，100-80*100

　　③ Power：1/2-1/2HP，1-1HP，2-2HP，3-3HP，5-5HP，7.5-7.5HP，10-10HP，15-15HP

　　④ Shaft Seal Material：T-Tungsten Steel，C-Ceramic，S-SSIC

　　⑤ Material：4-SUS304，6-SUS316

　　⑥ Rubber：V-VITON，E-EPDM，N-NBR

　　⑦ Frequency：5-50Hz，6-60Hz

Product Features

　　The body is made of high quality SUS material, high temperature and corrosion resistant.

　　Imported shaft seal, safe and no leakage.

　　The pump body fittings are processed by high-precision wax casting, with small error, stable performance and high life.

　　According to different media ring increase. Select SUS304 or SUS316 body material.
