Suitable temperature: 0-75 degrees
flow rate：417-790L/min
Pump Material：GFRPP
Head：1-40m
Pump Power：2.2-5.5KW
Price：1129-7289
Painting, surface treatment, exhaust gas treatment
S F - 4 0 - S K - 3 - 5 - V - P - T I
① ② ③ ④ ⑤ ⑥ ⑦ ⑧
① Model：SF
② Outlet：40:1-1/2"
③ Sp.：SK:1.1
④ Power：3:3HP，6:6HP，7.5:7.5HP
⑤ Frequency：5-50Hz，6-60Hz
⑥ Rubber：N-NBR，E-EPDM，V-VITON
⑦ Materia：F-GFRPP
⑧ Axis Materia：4-SUS304，6-SUS316，TI-TI

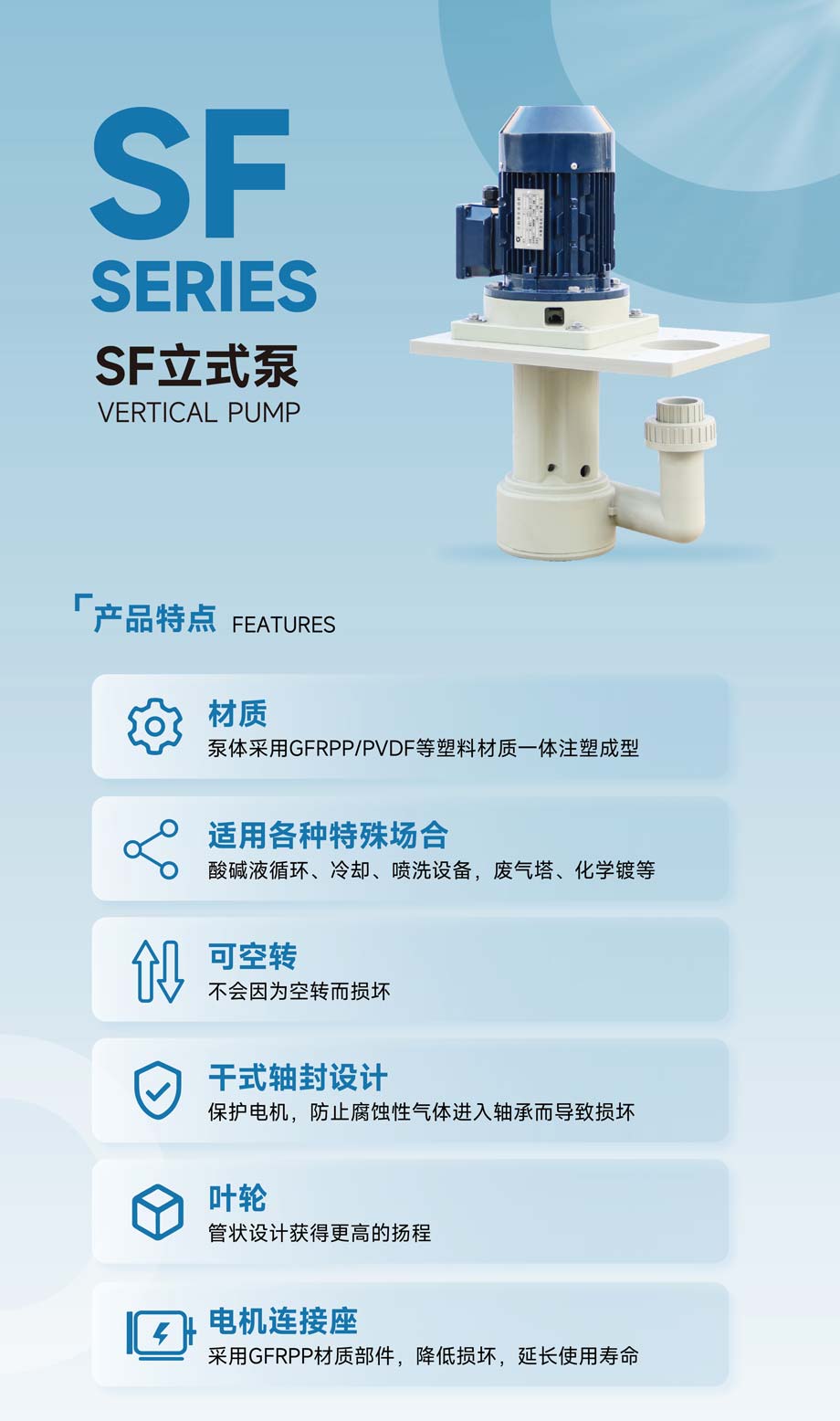

The main body is made of imported raw materials, which can resist strong corrosive liquid environment.
Adopting double impeller design with high efficient double flow channel, high head and large flow rate.
The special counter-impeller with well-sealed oil seal design prevents the motor and bearings from being eroded by chemical gases.
Pump power range from 2.2kW to 5.5kW.
Suitable for a variety of tank mounting methods, suitable for liquid high-pressure spraying, etching and circulating processes.
| brand name | model number | configure | list price | |
| iron axle | stainless steels | |||
Tank pumps | Aseries | 1/8HP(25*20) | 1129 | 1169 |
| 1/6HP(25*20) | 1289 | 1249 | ||
| 1/4HP(40*25) | 1249 | 1329 | ||
| 1/3HP(40*25) | 1329 | 1489 | ||
| 1/2HP(40*25) | 1449 | 1529 | ||
| 1HP(50*40) | 1889 | 2089 | ||
| 2HP(50*40) | 2089 | 2289 | ||
| 3HP(50*40) | 2289 | 2489 | ||
In-tank pumps | Bseries | 1HP(50*40) | 1889 | 2089 |
| 2HP(50*40) | 2089 | 2289 | ||
| 3HP(50*40) | 2289 | 2489 | ||
In-tank pumps | Cseries | 1HP(50*40) | 2089 | 2289 |
| 2HP(50*40) | 2289 | 2489 | ||
| 3HP(50*40) | 2489 | 2689 | ||
| 5HP(50*40) | 3689 | 4089 | ||
| 7.5HP(80*65) | 5289 | 5689 | ||
| 10HP(80*65) | 5689 | 6089 | ||
| 15HP(100*80) | 6889 | 7289 | ||
Tank pumps | Dseries | 3/4HP(40*32) | // | 2889 |
| 1HP(40*32) | // | 3089 | ||
| 2HP(40*32) | // | 3289 | ||
| 3HP(40*32) | // | 3489 | ||
| 5HP(50*50) | // | 4889 | ||
| 7.5HP(65*50) | // | 6889 | ||
| 10HP(65*50) | // | 7289 | ||
Note: Our company will make appropriate adjustments to the price according to the market situation, please contact the sales staff for the latest offer.
